HIGHER POWER

HIGHER POWER

5.0
Rated 5.0 out of 5 stars
1 Review
$175.00 USD
$175.00 USD
Sale Sold out
Shipping calculated at checkout.

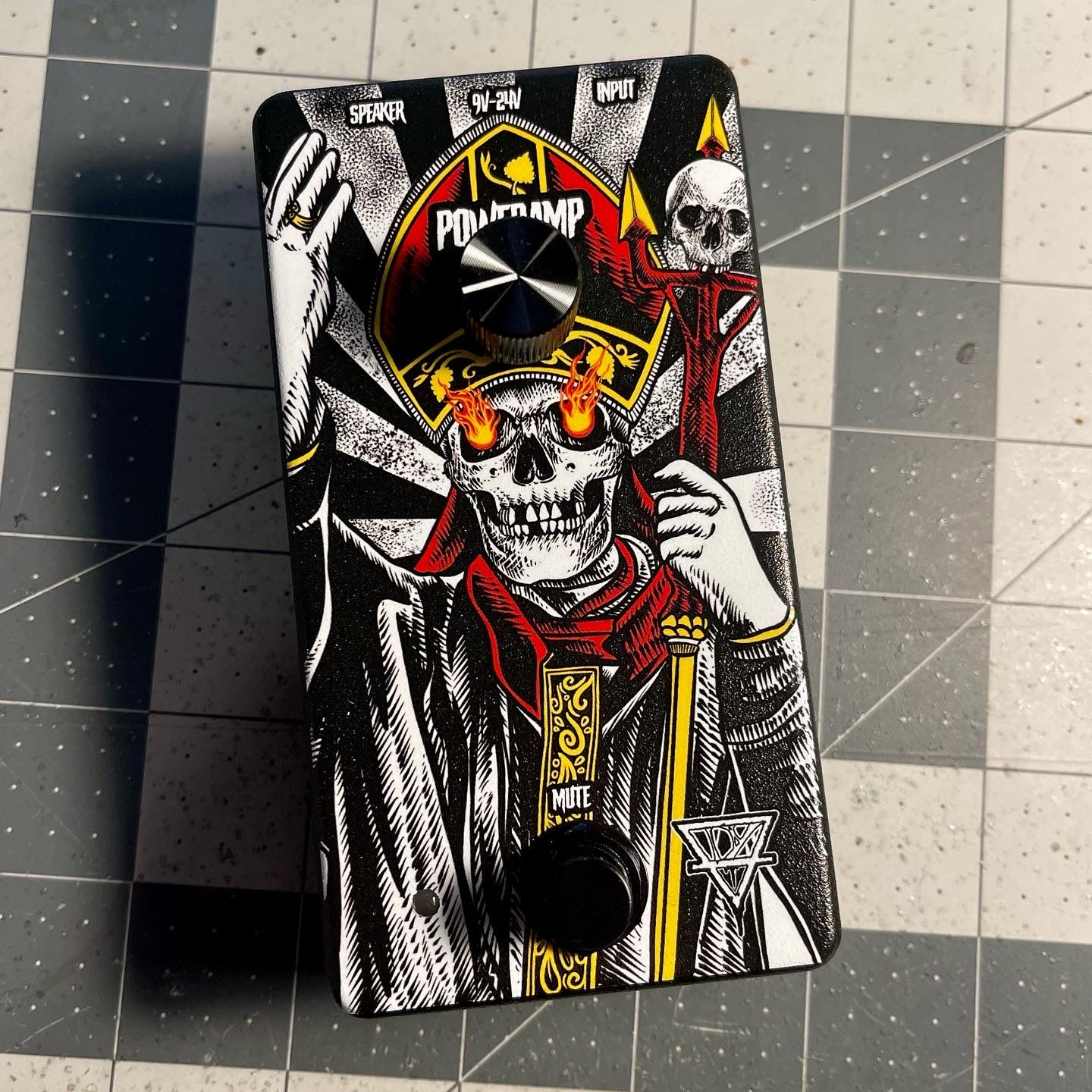

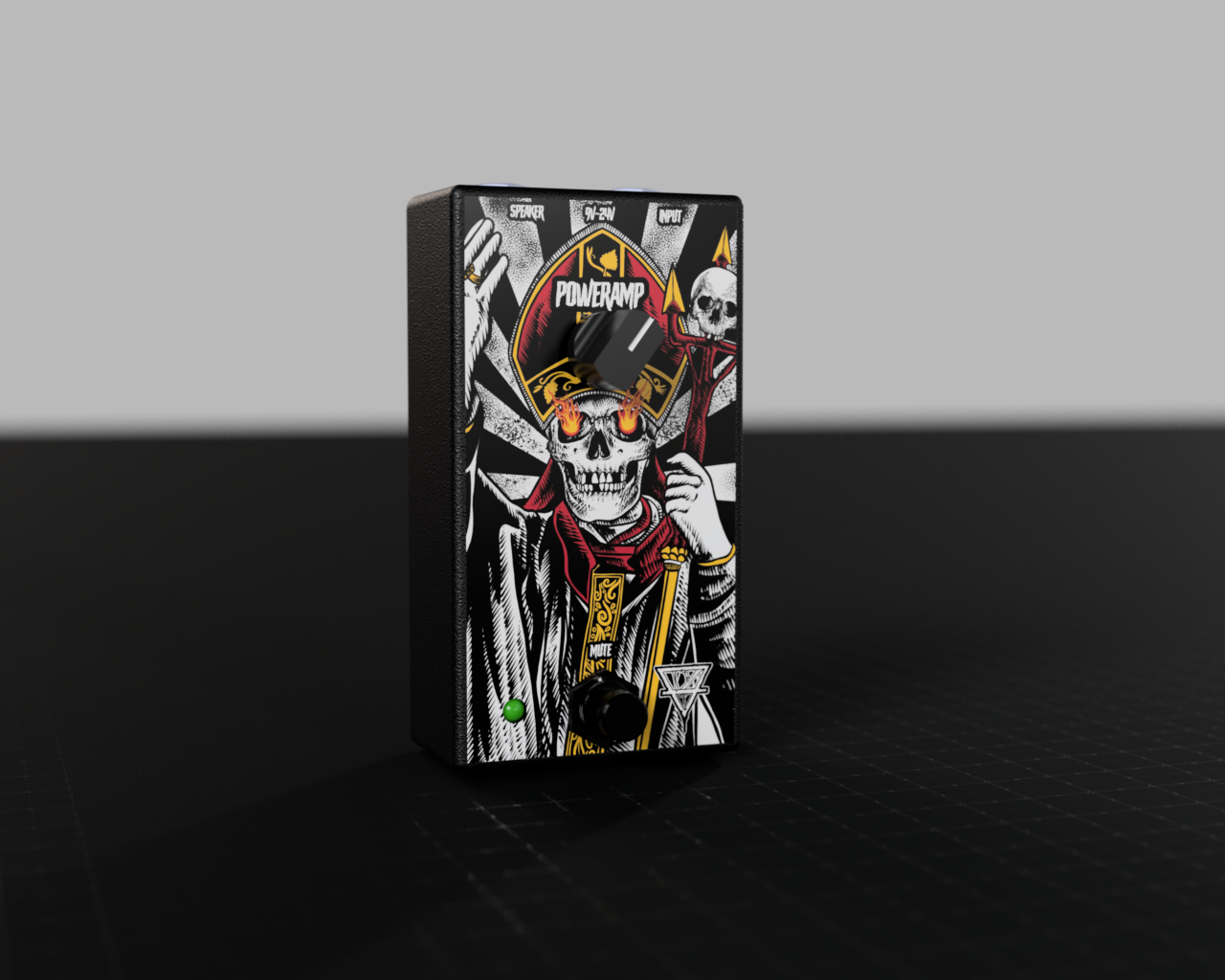

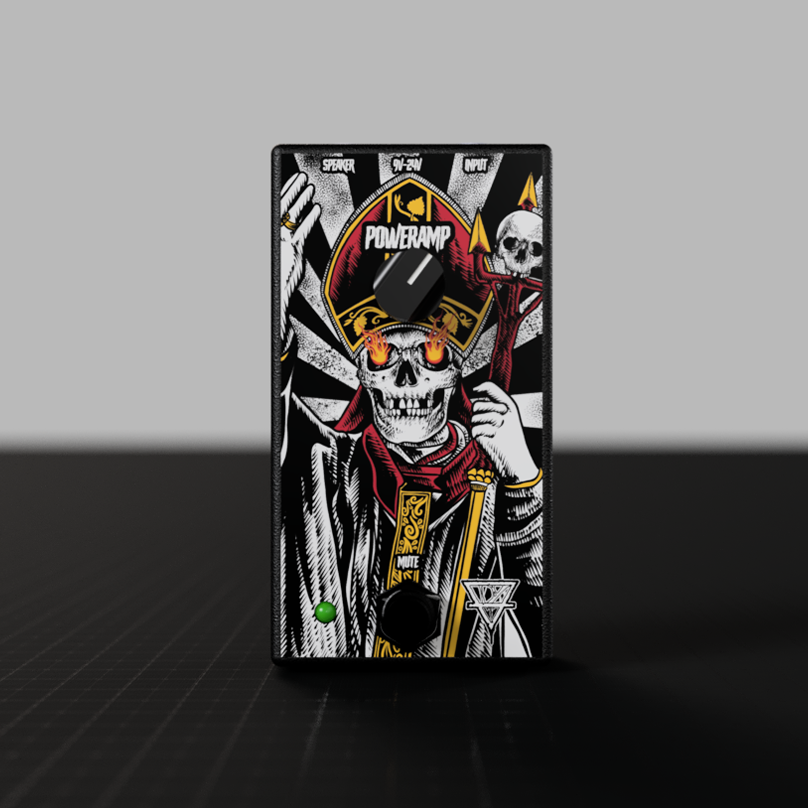

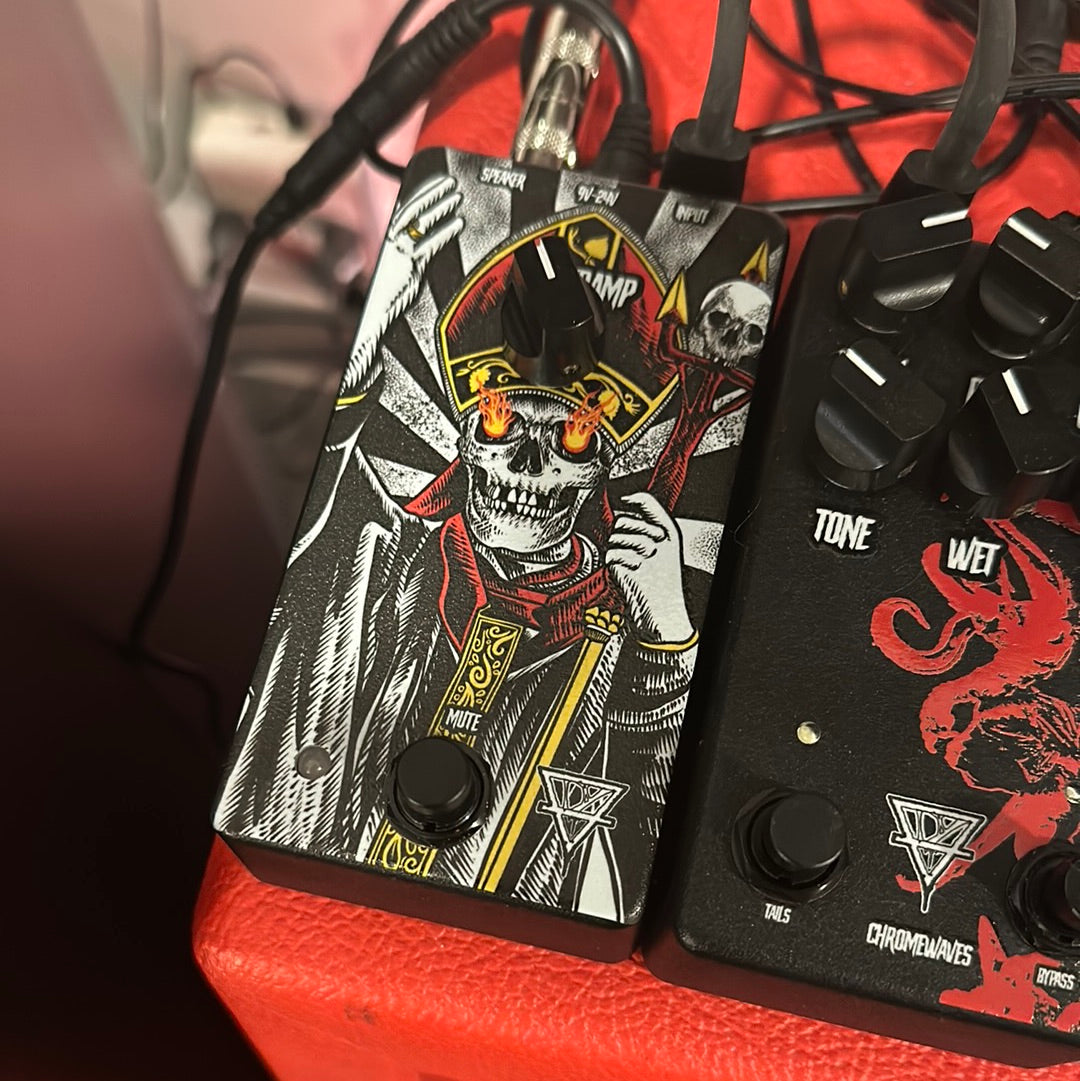

 Built around the TPA3118, Higher Power is a 60W class d solid state power amp solution.

Don't be fooled, it'll push your 4x12 plenty but it shines on a 1x12 or 2x12 at bedroom levels. The buffer inside sets up your signal with a nice flat response going into the power section so you can drop your favorite preamp pedals in front.

Output impedance of 4-16 ohm.

Designed to be fed with 24VDC center negative.  It can run on as little as 9v with power scaling down to approximately ~10W. This is not recommended to be powered by your daisy chain or iso-supply. Recommended to be with the supplied power supply and polarity adapter that is shipped with the product.

The supplied 24VDC power supply is center positive and the pedal is center negative. You must use the supplied adapter with them. Adapter is not required if using a typical center negative 9-18v power supply.

Do not use a class d power amp with an attenuator/loadbox. It’s not necessary and it will damage one or the other. Consult your attenuators manual first as I do not know all products and cannot answer for each product that exists out there. For example, Torpedo products specifically state they are safe for solid state amps and that is what I use here.





View full details

REVISIONS

Date Version Description
2024-01-24 1.3 Updated buffer circuit.
Added flat/transparent gain stage.
Added internal bright control
Improved low-end response.
2024-04-24 1.3 Price increased as this now ships with power supply.

CONTROLS

Name Location Description
PowerAmp External Controls the overall volume output to the speaker.
Gain Internal (trim) Use the gain stage to adjust input signal volume when needed.
Default is noon. Higher settings can create some opamp soft clipping.
Bright Internal (trim) Boost the top end for darker inputs.
Default: 25%
POWER

9-24VDC - CENTER NEGATIVE

This product can accept up to 24VDC supply input for additional headroom.

CONSUMPTION

##

SWITCHING

TRUE BYPASS

Soft click (1.1KGf) mechanical 3PDT.

DEMOS

  • Free Shipping

    Free USPS Priorty Mail shipping in the continental USA.

    International shipping rates calculated at check out.

    Please note international shipping times can be days to weeks. Unfortunately, this is out of my control.

  • Built To Order

    Unless otherwise noted, all builds are built to order. I build on my nights and weekends so build-time can vary but is typically 7-9 days from order. Excluding preorders. For preorders, see preorder details on product page for estimated shipping.
