SIGNAL PATH

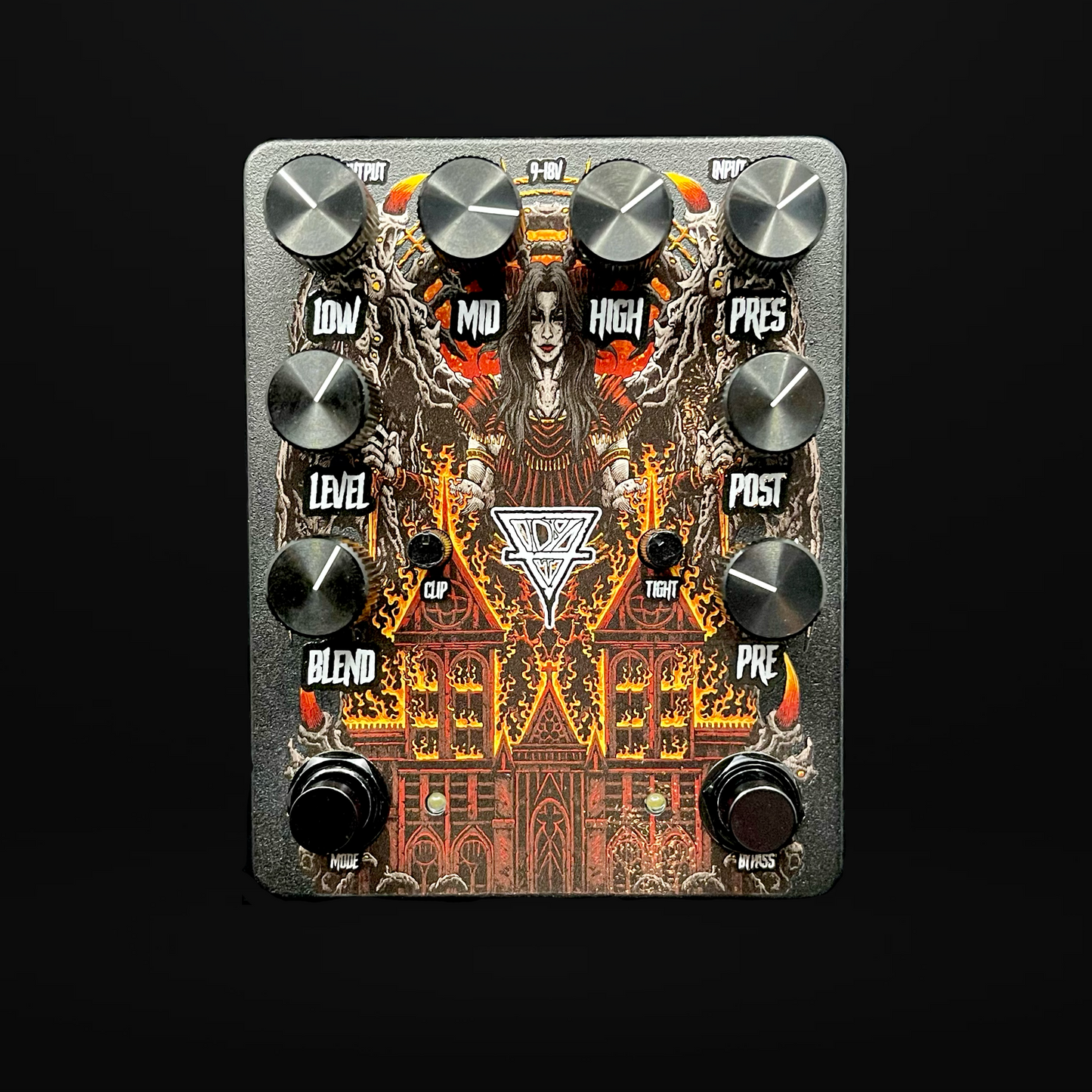

CONTROLS
Name | Location | Description |
---|---|---|
Level | External | Controls the output volume. |
Mode | External (Footswitch) |
Changes the character of the first gain stage.
Applies additional gain and restructures the low mids. |
Blend | External | Mix between 100% buffered dry signal and 100% wet signal to bring back the dynamics of your clean signal. |
Clean | Internal (Trim) | Adjust the amount of gain on the dry signal side of the blend. |
Pre | External |
Controls the amount of the first opamp gain stage.
Enable soft clipping DIP 1 for a more classic overdrive. |
Post | External |
Controls the amount of gain saturation into the hard clipping section.
If you experience oscilation with passive pickups at higher gain settings, place a buffer in front of the pedal. |
High | External | Roll off the treble frequencies. |
Mid | External | Cut/boost the mid frequencies. |
Low | External | Cut/boost the bass frequencies. |
Pres(ence) | External | Controls the upper mid-range frequencies. |
Tight | External | Controls the pre-gain low end frequencies. |
Clip | External |
Adjust the amount of hard clipping saturation.
This was the bottom side toggle in v1. |
Clip (DIP) | Internal (Trim) |
Toggle each to turn on/off soft clipping in the gain stage.
Default setting is both on. |
Bypass LED Brightness | Internal |
Adjust overall brightness of front LED.
Default setting at minimum (full CCW). |
POWER
9-18VDC - CENTER NEGATIVE
This product can accept up to 18VDC supply input for additional headroom.
CONSUMPTION
28mA
SWITCHING
TRUE BYPASS
Soft click (1.1KGf) mechanical 3PDT.
