REVISIONS
Date | Version | Description |
---|---|---|
2023-11-26 | 3.1 | slight modification to overall level for more output fixed TS mid control is now a trim pot with default where it was set before very subtle gain revision newer higher quality opamps (goodbye TL072) |
2024-01-25 | 3.2 | changed the internal charge pump from bipolar 9v to bipolar 15v for improved headroom
This is the last change I see for GRIM for a long time, this thing is dialed! |
SIGNAL PATH

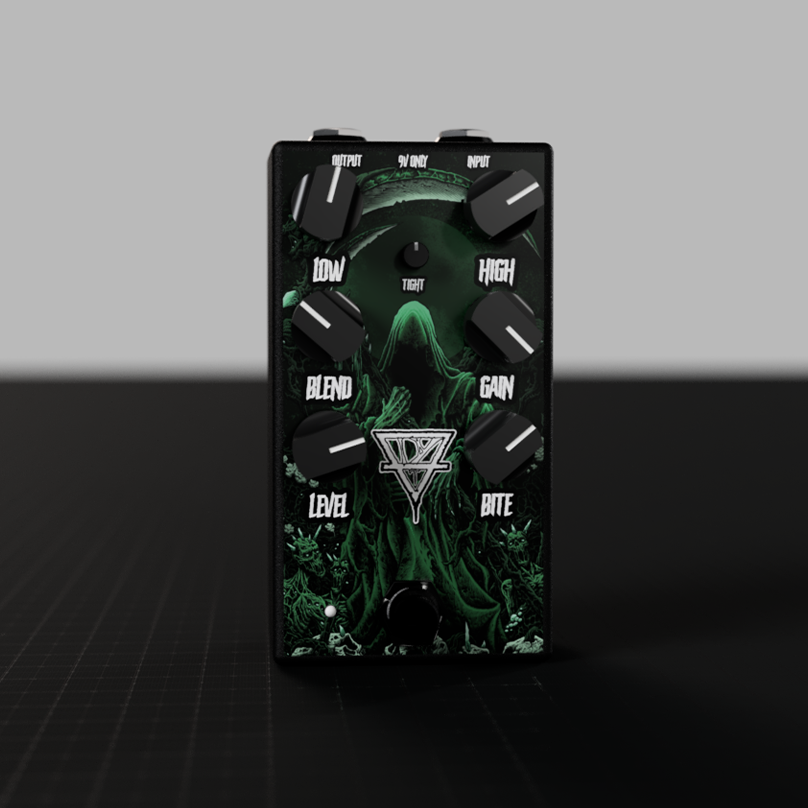

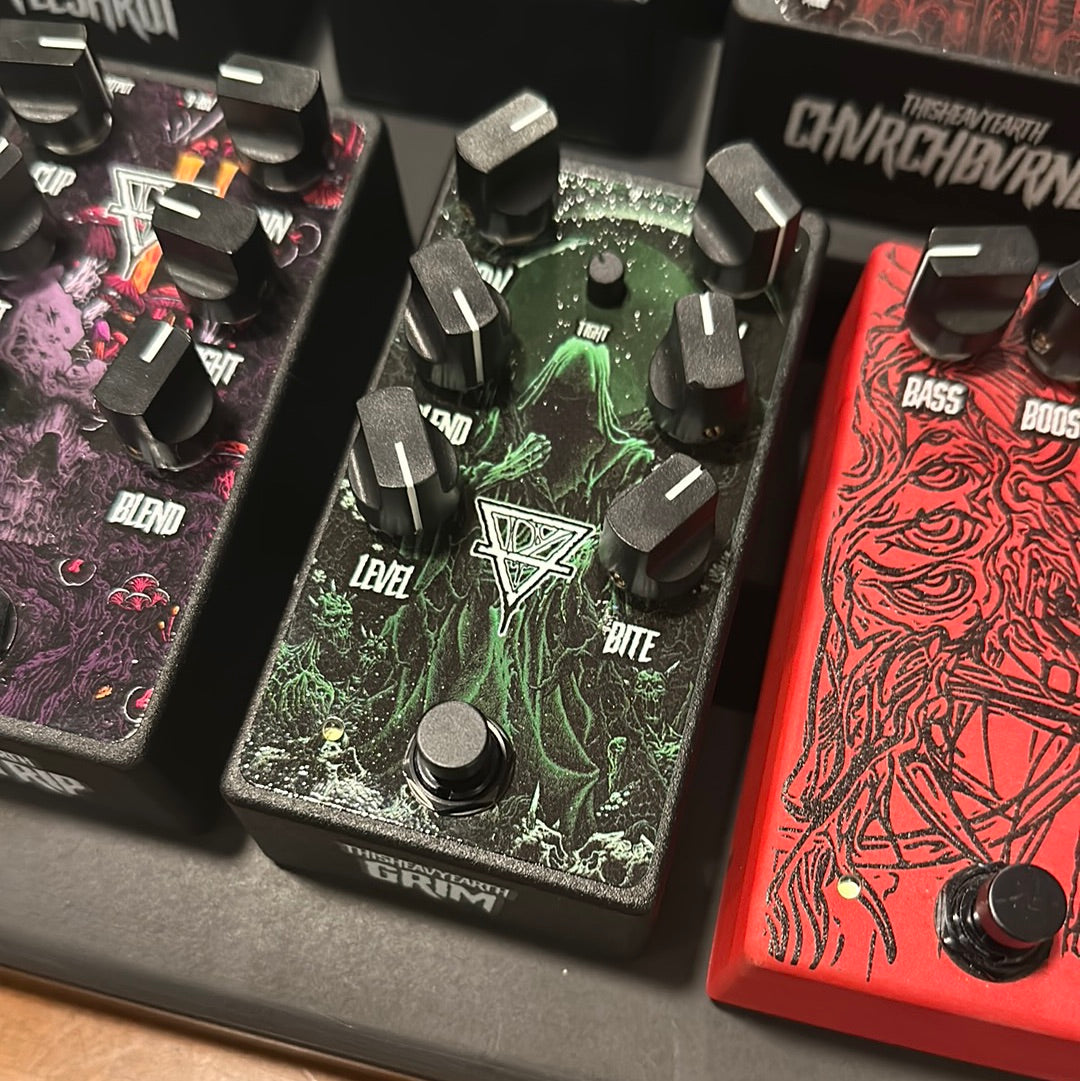

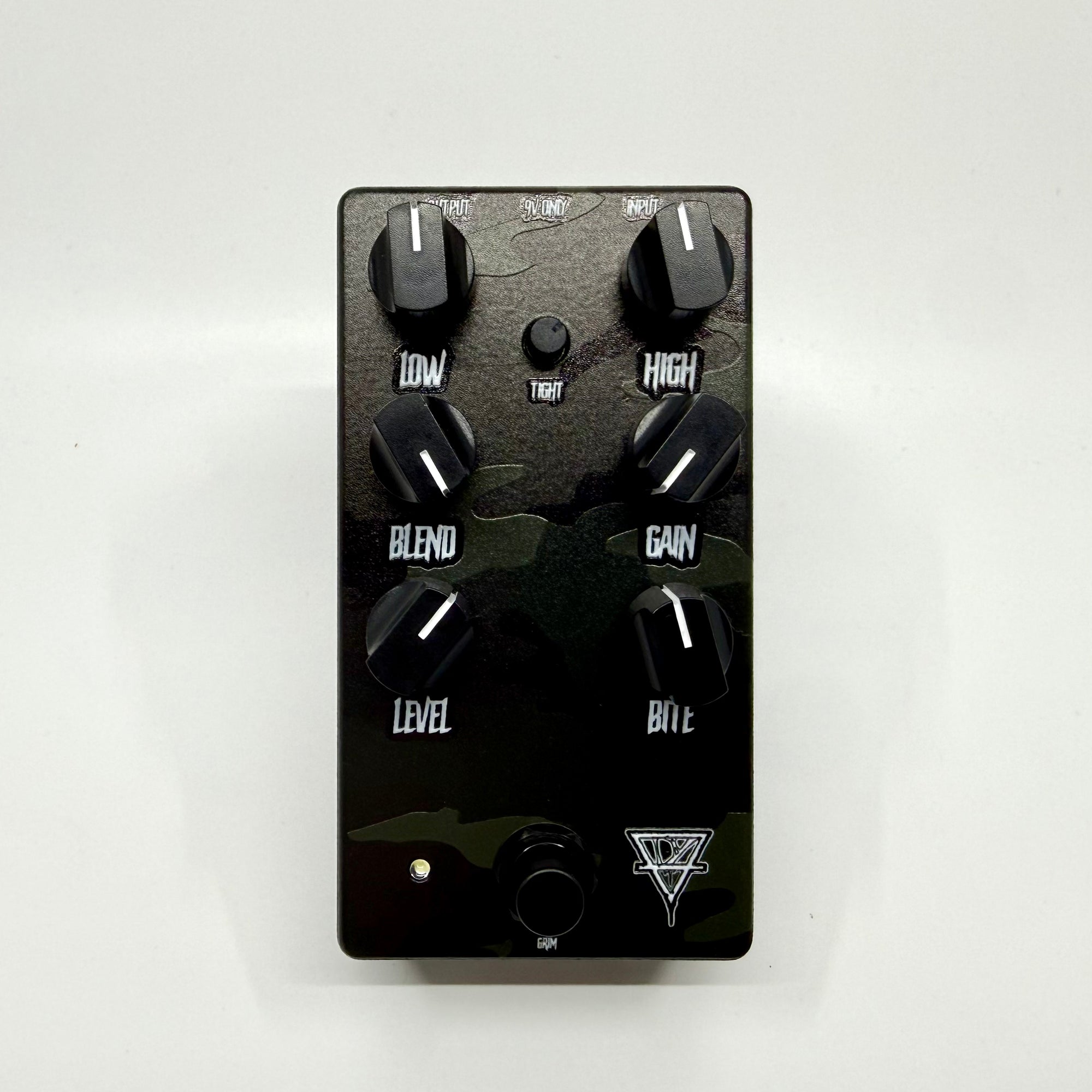

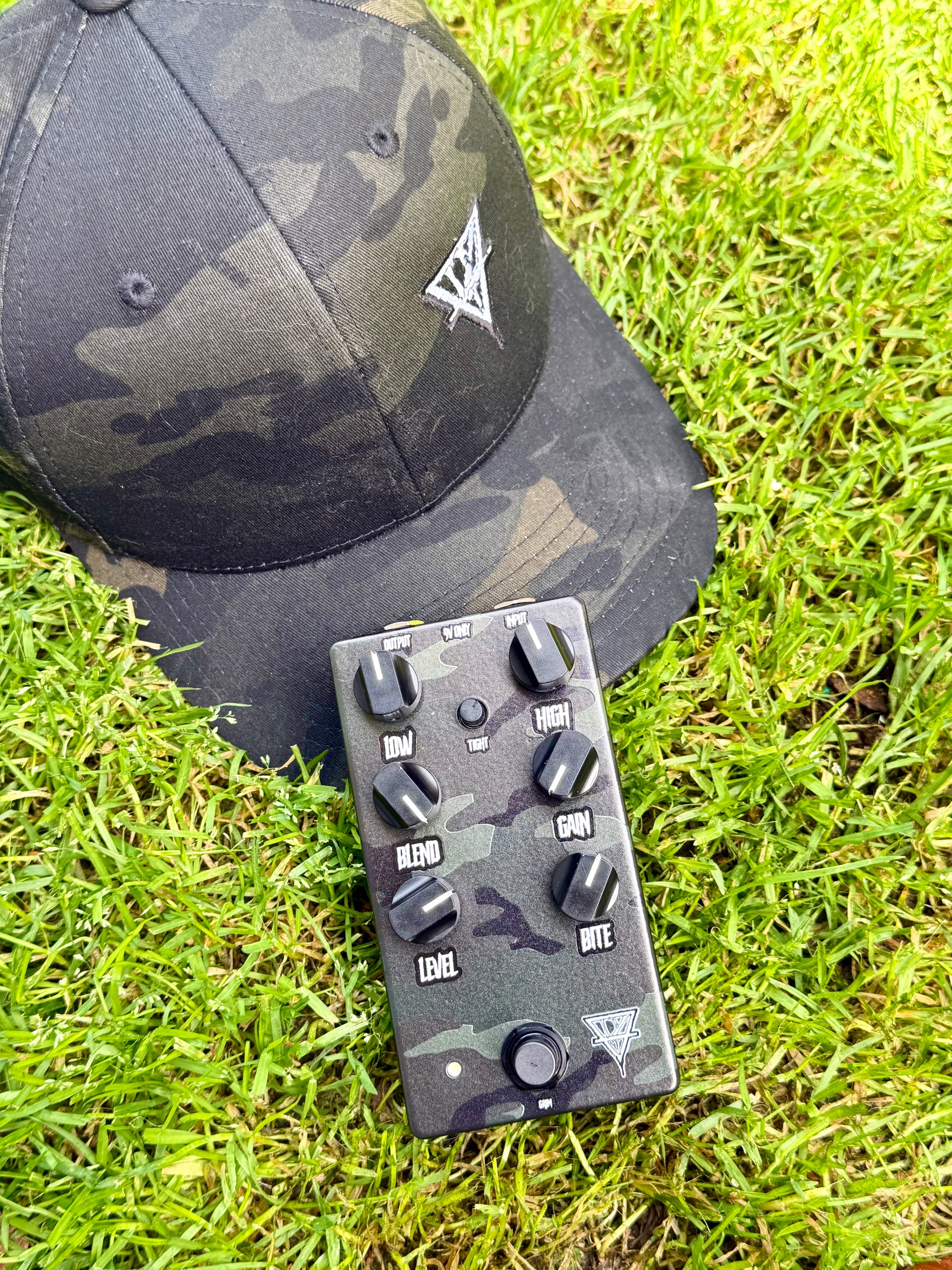

CONTROLS
Name | Location | Description |
---|---|---|
Impedance | Internal (trim) |
The variable impedance buffer is set to 1M by default and won't matter for players using active pickups or buffered pedals in front. There is a significant impact for single coil pickups. Decreasing impedance and loading the down the pickups will attenuate the top end and smooth out the high-end grit. Pushing the impedance (default) the top end and pickup attack are more defined.
Default: 1M |
Level | External | More on tap than the stock 808. This is your standard volume attenuator that allows you to set from unity or below unity, or crank it up for a boosted signal. |
Tight | External | Pre-gain high pass to tighten up the low end. |
LPF | Internal (trim) |
Smooth out the high end of the gain output.
Default: 9/10, Almost fully CW. |
Low | External | Cut/boost the bass frequencies. |
High | External | Cut/boost the high frequencies. |
Blend | External |
Mix between 100% buffered dry signal and 100% wet signal
Full CCW for buffered dry. |
Clean Boost | Internal (trim) |
Adjust from unity buffer to clean boost on the 100% dry side of the Blend.
Default: 3/4 CW |
Mid | Internal (trim) |
Adjust the amount of mid hump. This is the classic Tone control and it alters the tone before going into the 2 band EQ.
Default: 8/10 CW |
Bite | External |
The mid boost control contours the frequency peak from low mids (counterclockwise) to high mids (clockwise).
Start at noon. |
Gain | External | More on tap than the stock 808. This works in conjunction with the toggle switch. |
Clip | Internal [DIP] |
Allows for symmetrical LED (high gain punch, compressed)[on,off], Diode Lift / None (clean boost) [off,off] or asymmetrical silicon (dynamic) [off,on] clipping options
Default: Left up (LED), Right down |
Bypass LED Brightness | Internal |
Adjust overall brightness of front LED.
Default setting at minimum (full CCW). |
POWER
9VDC ONLY - CENTER NEGATIVE
This product contains internal circuitry to increase the 9VDC supply to higher voltages for additional headroom.
This product contains THE overvoltage circuit for 9v input only.
CONSUMPTION
41mA
SWITCHING
TRUE BYPASS
Soft click (1.1KGf) mechanical 3PDT.
